Improved efficiencies in implant dentistry: Use of patient-specific accelerated therapy to drive practice growth

April 16, 2021
In implant dentistry, change is the only constant. Drs. Gary Morris, Mark Steinberg, and Carl Drago explain how site-specific implants for implant surgical and prosthetic therapies offer choices for individual clinical applications.

Dental implant therapy has been growing steadily over the last several decades. However, the penetration rate of implants within the overall tooth replacement market remains relatively low. This has been driven by factors such as clinician education, increased costs of surgical/restorative procedures, limited insurance coverage, and the extended length of time associated with treatment. The implant industry has responded to these hurdles by offering value brands that mitigate some of the challenges. Although competitive pricing is helpful, it may lead to the use of inexpensive and/or poorly designed implants in cases where more advanced designs are indicated. A short-term windfall can easily turn into financial and clinical challenges.1-3

Site-specific implants for specific and varied implant surgical and prosthetic therapies allow clinicians’ choices regarding precisely designed products for individual clinical applications. These implants have been developed to provide improved primary stability, avoid/minimize preimplant bone grafting procedures, and allow for improved soft- and hard-tissue preservation around implants.4,5 Site-specific implants can also accelerate treatment by placing specific implants directly into extraction sockets immediately after tooth removal. Furthermore, if primary stability is optimized, site-specific implants can be loaded sooner, which usually leads to fewer patient visits, better soft-tissue profiles, and quicker overall treatment.5-9

Screw- versus cement-retained implant restorations

Cacaci et al. recently published the results of a clinical study that compared the performance of screw- versus cement-retained implant restorations.10 After a mean clinical service time of 36.9 months, porcelain veneer fractures occurred in 1.8% of the cases. The authors concluded that the type of retention did not
have an impact on restoration survival rates. Weigl et al. reported similar results in their clinical study that compared screw- and cement-retained crowns.11 They also reported that treatment times were significantly shorter for screw-retained restorations.

Earlier, Vigolo et al. reported the results of a 10-year clinical study that compared screw- versus cement-retained crown restorations.12 They concluded that there was no evidence of significant differences in clinical parameters of peri-implant marginal bone or peri-implant soft tissues with either cement- or screw-retained single-tooth implant restorations.

Excess subgingival cement has been associated with increased incidences of peri-implant mucositis and peri-implantitis. Screw retention has an added benefit in that cement is not used, so it cannot be left behind.

Staubli et al. published a systematic review regarding excess cement and the risk of peri-implant disease.13 They concluded that excess cement was a possible risk indicator for peri-implant diseases and was more frequently observed with soft-tissue healing periods shorter than four weeks. To reduce the risk of peri-implant disease associated with excess cement, supragingival crown margins were recommended.

Author Gary Morris, DDS, tracked the paradigm shift from cement- to screw-retained implant restorations in his clinical prosthodontic practice. This was directly related to the introduction of angled implants (Co-Axis Implants, Southern Implants; figure 1). Co-Axis Implants were designed with angle offsets
between restorative platforms and implant bodies of 12, 24, or 36 degrees. This design permits optimal bone/implant contact between implants and available bone, and the restorative platforms emerge at an optimal esthetic angle. Cement retention was no longer needed. Morris also noted decreased prosthetic complications such as crown loss/dislodgment with screw-retained restorations (table 1).Site-specific implants, together with the appropriate protocols and team approach that the authors have adopted, have generated significant benefits, including increased patient acceptance, a greater number of implant procedures, more efficient treatment plans with reduced patient visits, and a decreased need for
revision therapy over time. More patients treated more definitively using faster protocols have allowed the authors to flourish even though the number of clinics offering less expensive dental implants continues to increase in areas adjacent to their practices.

Growth of simultaneous extraction and molar implant placement

The authors noted a paradigm shift in their practices over the last several years. Hattingh et al. published a technique article regarding immediate placement of ultrawide diameter implants in molar sockets.14 Instead of the more traditional protocol that involved diagnosis of a nonrestorable molar with subsequent extraction, graft, osseous healing, implant placement, osseointegration, and implant restoration, the authors adopted an accelerated treatment protocol due to the availability of site-specific implants.

The original protocol generally required 6–18 months for patients to receive implant-retained restorations. The accelerated treatment protocol typically
included removal of the nonrestorable molar and then placement of a site-specific, wide-diameter implant (7, 8, and 9 mm diameters; 6 mm diameter External Hex MSc only, MAX implant, Southern Implants; table 2) into the extraction site immediately following removal of the tooth (figures 2–4). Patients experience one healing period and will generally be ready for impressions and placement of definitive restorations approximately 10–12 weeks later (table 3). This protocol saves
clinical time, expense, decreases morbidity (one surgical procedure versus at least two), and has improved patient acceptance of implant treatment.

Single-/multiple-unit/full-arch treatment with and without immediate occlusal loading

Anatomical constraints at implant sites often present a conflict between surgical and prosthodontic prerequisites for screw-retained implant-supported prostheses. Howes published the use of a dual-axis implant designed to help clinicians overcome these challenges by facilitating accurate surgical placement and prosthetic simplicity, as well as improved biomechanics and enhanced
esthetics.15 The implants’ restorative platforms were offset relative to the body of the implants by 12, 24, or 36 degrees (Co-Axis Implants). This allowed angle corrections at the implant level and simplified restorative procedures and screw access

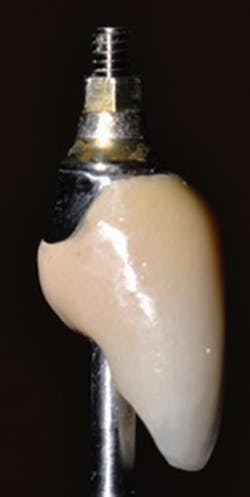

opening locations (figures 5–7).One common patient complaint or concern is the amount of time it takes for single-implant restorations to be completed. With site-specific implant types, the authors reported a significant decrease in treatment time (table 4). For instance,

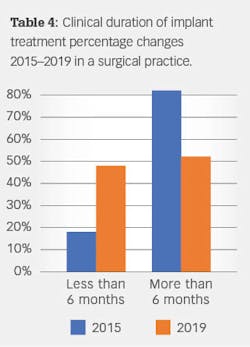

in the oral surgical practice, author Mark Steinberg, DDS, MD, reported that in 2015, 82% of the cases took longer than six months for treatment to be completed. In 2019, with site-specific implants, only 52% of the single-unit implant cases took longer than six months to complete.

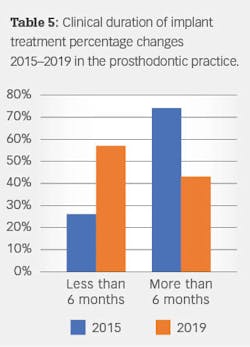

Similar findings were also noted in the prosthodontic practice (table 5). Differences in the numbers between the oral surgery and prosthodontic practices occurred because the practices are independent with multiple referral sources.

Since the authors have adopted accelerated treatment protocols with site-specific implants, they both have noted increased acceptance rates, as well as growth in implants placed and restored. Table 6 illustrates the increased acceptance rate for implant treatment in both practices. Data reflects patient acceptance of implant treatment at the first consultation/clinic visit.

The authors correlated the increased acceptance rates with several factors, including consistent, well-manufactured, precise implant and restorative components; multiple implant choices that fit a multitude of clinical situations;
decreased treatment times; and a dedicated manufacturing/sales/administrative team. One of the first clinical studies (10-year follow-up) involving immediate occlusal loading with full-arch restorations was published by Schnitman et al. in 1997.16 Life-table analysis demonstrated an overall 10-year implant survival rate of 93.4%. The 10-year life-table analysis of survival was 84.7% for immediately
loaded implants and 100% for submerged, unloaded implants. Cumulative survival rates for immediately loaded implants have improved over time. Successful full-arch restorations on immediately loaded implants have also proven to be predictable.17-20 The increased acceptance rates further increased the growth in implant placement and implant restorations (table 7).

Summary

The science and clinical implementation associated with implant dentistry have changed over the past several decades. Likewise, the authors have also modified and adapted their clinical practices to incorporate innovations into their
individual private practices. Innovations in implant restorative components have resulted in increased use of screw-retained restorations, with resultant decreases in implant prosthetic complications and peri-implantitis/peri-implant mucositis. Total treatment times have decreased without sacrificing implant success/survival. Increased implant acceptance rates are likely correlated with decreased treatment times and decreased surgical morbidities. Extraction and immediate implant placement with nonoccluding immediate implant restorations have proven to be as efficient and efficacious as traditional protocols. This protocol is predicated on high implant insertion torque values, which are more easily obtained with improved implant designs. Site-specific implant designs have been developed and
implemented to assist implant surgeons in placing specific implants for specific clinical situations.

As innovations continue in implant dentistry, change is the only constant. Clinicians and manufacturers will need to continue clinical and laboratory research to meet the ongoing challenges of dentate and edentulous patients.

Authors’ disclosure: Drs. Morris, Steinberg, and Drago are spokespersons for Southern Implants North America. Products mentioned in this article are used in
the regular course of practice.

References

  1. Goodacre BJ, Goodacre SE, Goodacre CJ. Prosthetic complications with implant prostheses (2001–2007). Eur J Oral Implantol. 2018;11(Suppl 1):S27-S36.
  2. Romanos GE, Delgado-Ruiz R, Sculean A. Concepts for prevention of complications in implant therapy. Periodontol 2000. 2019;81(1):7-17. doi:10.1111/prd.12278
  3. De Kok IJ, Duqum IS, Katz LH, Cooper LF. Management of implant/prosthodontic complications. Dent Clin North Am. 2019;63(2):217-231. doi:10.1016/j.cden.2018.11.004
  4. Östman PO, Chu SJ, Drago C, Saito H, Nevins M. Clinical outcomes of maxillary anterior postextraction socket implants with immediate provisional restorations using a novel macro-hybrid implant design: an 18- to 24-month single-cohort prospective study. Int J Periodontics Restorative Dent. 2020;40(3):355-363. doi:10.11607/prd.4467
  5. Chu SJ, Tan-Chu JHP, Levin BP, Samachiaro GO, Lyssova V, Tarnow DP. A paradigm change in macro implant concept: inverted body-shift design for extraction sockets in the esthetic zone. Compend Contin Educ Dent. 2019;40(7):444-452.
  6. Chen ST, Wilson TG Jr, Hämmerle CHF. Immediate or early placement of implants following tooth extraction: review of biologic basis, clinical procedures, and outcomes. Int J Oral Maxillofac Implants. 2004;19(Suppl 1):12-25.
  7. Walker LR, Morris GA, Novotny PJ. Implant insertional torque values predict outcomes. J Oral Maxillofac Surg. 2011;69(5):1344-1349. doi:10.1016/j.joms.2010.11.008
  8. Vandeweghe S, Ackermann A, Bronner J, Hattingh A, Tschakaloff A, De Bruyn H. A retrospective, multicenter study on a novo wide-body implant for posterior regions. Clin Implant Dent Relat Res. 2012;14(2):281-292. doi:10.1111/j.1708-8208.2009.00253.x
  9. Al-Sabbagh M, Kutkut A. Immediate implant placement: surgical techniques for prevention and management of complications. Dent Clin North Am. 2015;59(1):73-95. doi:10.1016/j.cden.2014.09.004
  10. Cacaci C, Cantner F, Mücke T, Randelzhofer P, Hajtó J, Beuer F. Clinical performance of screw-retained and cemented implant-supported zirconia single crowns: 36-month results. Clin Oral Investig. 2017;21(6):1953-1959. doi:10.1007/s00784-016-1982-1
  11. Weigl P, Saarepera K, Hinrikus K, Wu Y, Trimpou G, Lorenz J. Screw-retained monolithic zirconia vs. cemented porcelain-fused-to-metal implant crowns: a prospective randomized clinical trial in split-mouth design. Clin Oral Investig. 2019;23(3):1067-1075. doi:10.1007/s00784-018-2531-x
  12. Vigolo P, Mutinelli S, Givani A, Stellini E. Cemented versus screw-retained implant-supported single-tooth crowns: a 10-year randomised controlled trial. Eur J Oral Implantol. 2012;5(4):355-364.
  13. Staubli N, Walter C, Schmidt JC, Weiger R, Zitzmann NU. Excess cement and the risk of peri-implant disease – a systematic review. Clin Oral Implants Res. 2017;28(10):1278-1290. doi:10.1111/clr.12954
  14. Hattingh AC, De Bruyn H, Ackermann A, Vandeweghe S. Immediate placement of ultrawide-diameter implants in molar sockets: description of a recommended technique. Int J Periodontics Restorative Dent. 2018;38(1):17-23. doi:10.11607/prd.3433
  15. Howes D. Angled implant design to accommodate screw-retained implant-supported prostheses. Compend Contin Educ Dent. 2017;38(7):458-463.
  16. Schnitman PA, Wöhrle PS, Rubenstein JE, DaSilva JD, Wang NH. Ten-year results for Brånemark implants immediately loaded with fixed prostheses at implant placement. Int J Oral Maxillofac Implants. 1997;12(4):495-503.
  17. Chen J, Cai M, Yang J, Aldhohrah T, Wang Y. Immediate versus early or conventional loading dental implants with fixed prostheses: a systematic review and meta-analysis of randomized controlled clinical trials. J Prosthet Dent. 2019;122(6):516-536. doi:10.1016/j.prosdent.2019.05.013
  18. Drago C. Cantilever lengths and anterior-posterior spreads of interim, acrylic resin, full-arch screw-retained prostheses and their relationship to prosthetic complications. J Prosthodont. 2017;26(6):502-507. doi:10.1111/jopr.12426
  19. Jensen OT, Ringeman JL, Adams MW, Gregory N. Reduced arch length as a factor for 4-implant immediate function in the maxilla: a technical note and report of 39 patients followed for 5 years. J Oral Maxillofac Surg. 2016;74(12):2379-2384. doi:10.1016/j.joms.2016.08.002
  20. Crespi R, Capparè P, Gastaldi G, Gherlone EF. Immediate occlusal loading of full-arch rehabilitations: screw-retained versus cement-retained prosthesis. An 8-year clinical evaluation. Int J Oral Maxillofac Implants. 2014;29(6):1406-1411. doi:10.11607/jomi.3746
